avec éclairage de plaque en bout

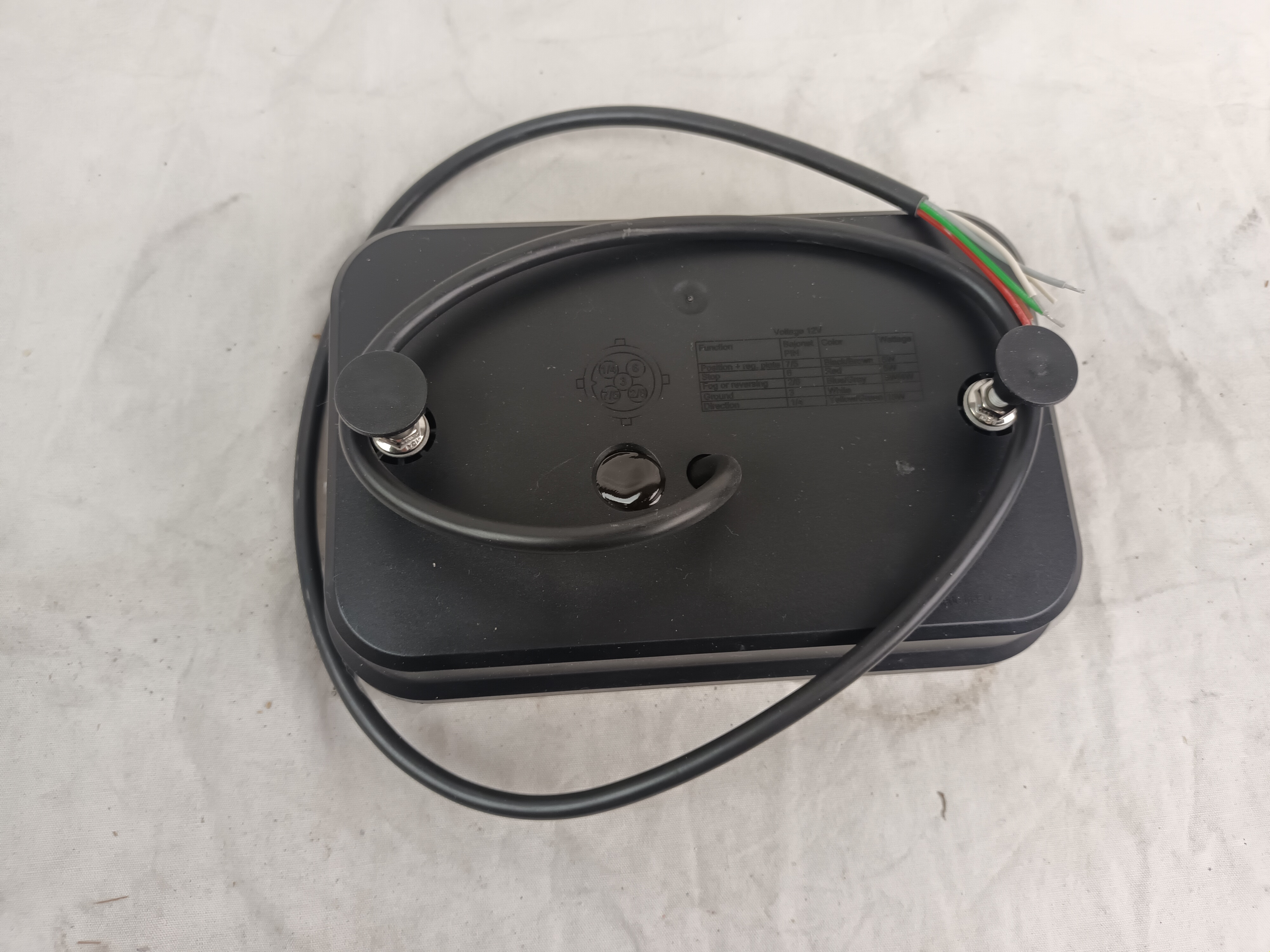

avec un fil sortant de 90 cm
avec feu de brouillard
Entre axes fixation 152 mm M6
épaisseur 50 mm

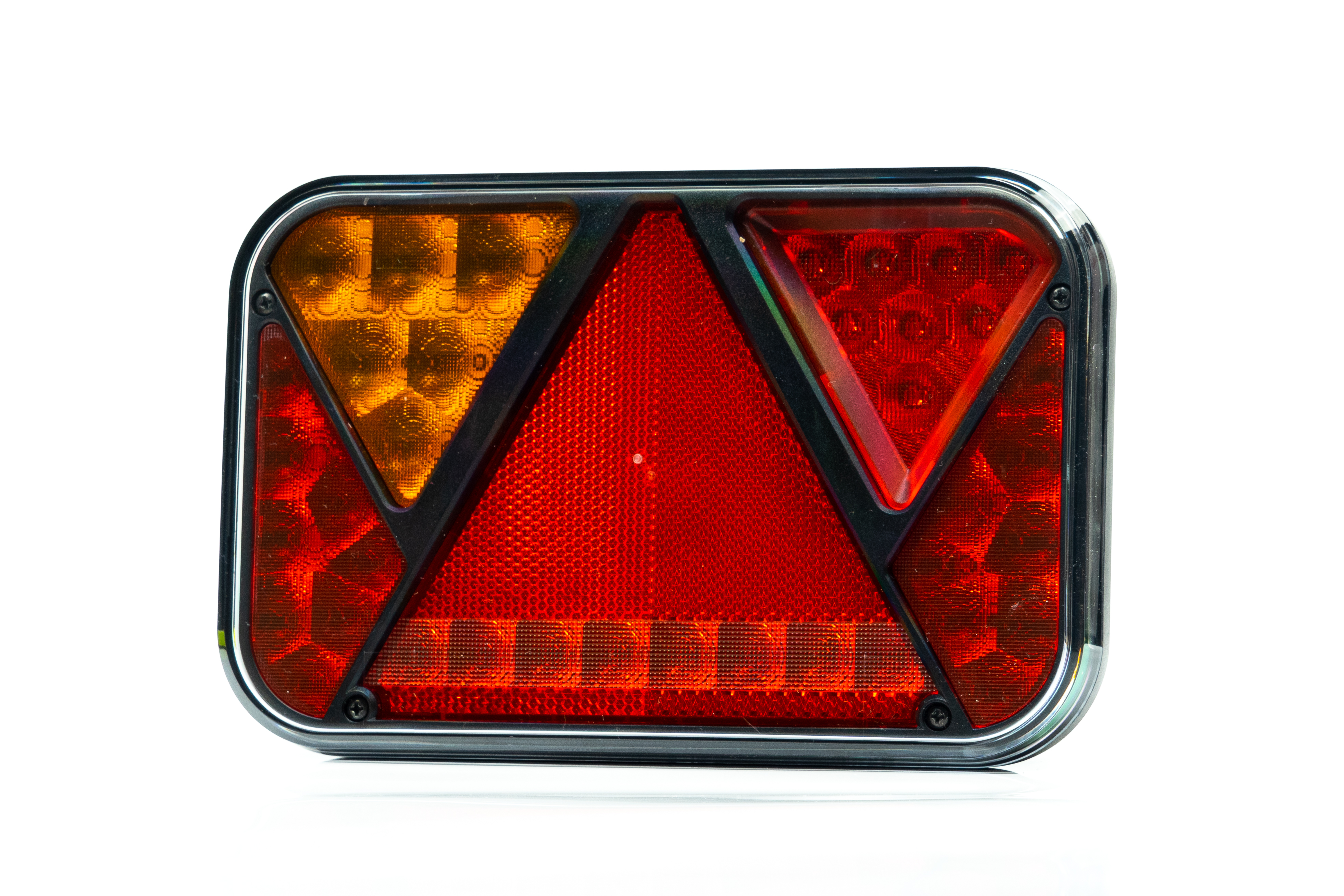

LAMP FUNCTIONS
rear running light
number plate light
STOP light
indicator
reversing light
fog light
reflector
LAMP PARAMETERS (FT-270 LED):
supply voltage: 12-15V DC
operating temperature: – 40°C to +55°C
lamp is resistant to any weather conditions
lamp is fully airtight
Power consumption:
– rear running light + number plate light: 12V = 0,1A
– version without number plate light: 12V = 0,05A
– STOP light: 12V = 0,2A
– indicator: 12V = 0,2A
– reversing light: 12V = 0,2A
– fog light: 12V = 0,2A
Power consumption / Rated power:
– rear running light + number plate light: 12V = 1,2W
– version without number plate light: 12V = 0,6W
– STOP light: 12V = 2,4W
– indicator: 12V = 2,4W
– reversing light: 12V = 2,4W
– fog light: 12V = 2,4W
